1200mm 20W-22W
Double tube integrated
1200mm 40W-44W
600mm 20W-22W

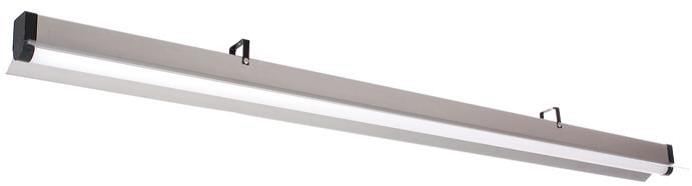

The T8 LED tube is totally Integrated into high-thermal conductivity aluminium alloy base and housing.
Remarkable heat dissipation.Available with single tube integrated and double tube integrated,
length from 600mm to 2400mm
Electronic features
Outstanding LED drive power with constant current & constant voltage.
Isolating power source with Ultra-wide voltage input(80~280V/AC)
Filter circuit(EMI) integrated
Ultra-glareless light diffuser PC cover
LED Luminous Efficiency(lm/w)> 110 lm/w
Utmost low luminous decay, more than 50,000 hrs life span
LED lights dimmable available ,remote control or N.A
Model LED Qty: Wattage(W) Tube quantity Lamp size: Color Luminous Flux(lumen) Power Factor Life Time SS-HB-NI-MW-21W-HB 312Pcs SMD3020 21W 1pc 1198mm WW/NW/CW 1960Lm >0.9 40,000Hrs SS-HB-NI-MW-42W-HB 624Pcs SMD3020 42W 2pcs 1198mm WW/NW/CW 3920Lm >0.9 40,000Hrs
| Model | LED (Pcs) | Wattage (W) | Colour | Lumens (Lm) | Size (mm) |
Beam Angle(°) |
Input Voltage(V) |
Waterproof (IP) | Download |
| SS-HB-NI-MW-21W-HB | 312Pcs LED(1pc Tube) | 21W | WW,NW,CW | 1960Lm | 1198mm | 180D | 80~280V/AC) | IP20 |  |
| SS-HB-NI-MW-42W-HB | 624Pcs(2pcs led tube) | 42W | WW,NW,CW | 3920Lm | 1198mm | 180D | 80~280V/AC) | IP20 | |
