Product Category
SS-TP-1230,95mm-80P-HP-90WTrioffer LightCar Parking LightProducts


SS-TP-1230,95mm-80P-HP-90W



Explosion-proof

LED Light

Anticollision,Waterproof,Dustproof

PDF Documentation

Features

Explosion-proof LED Light
80%-90% energy saving, reduced carbon dioxide release.
No need annual maintenance and replacement.
No UV Rays,with fresh touch.
No risk of burns:Low current, can reach the highest electrical safety standards.
Life time:50,000Hours

Weight:4KG


Specifications
Model

LED

(Pcs)

Wattage

(W)

Colour

Lumens

(Lm)

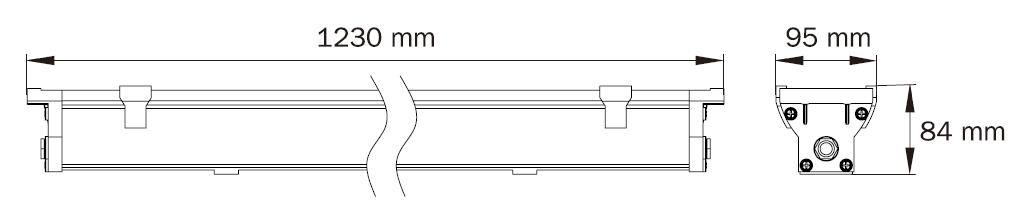

Size

(mm)

Beam

Angle(°)

Input

Voltage(V)

Waterproof

(IP)

Download
SS-TP-1230*95mm-80P-HP-90W80Pcs90WWW,NW,CW8000Lm1230*84mm*95mm 135° AC90~240V IP65

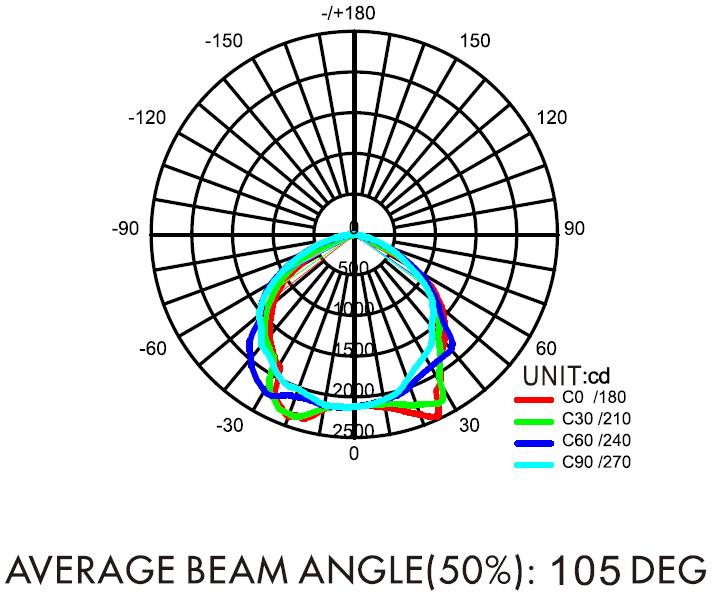

Photometric Curve

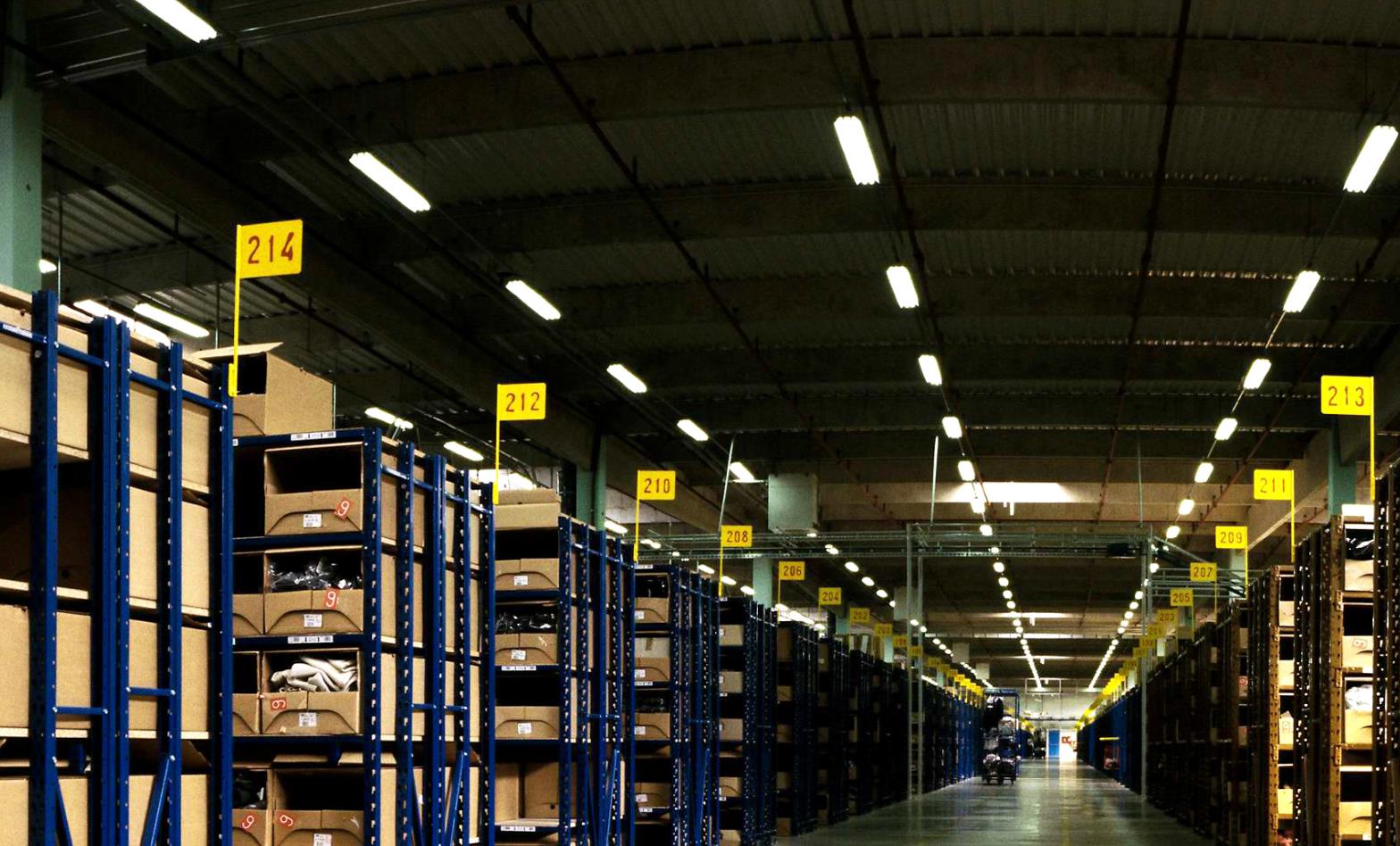

Icehouse, Industry, etc

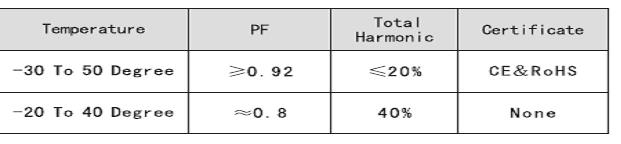

Comparasion:

 Model : SS-TP-1230*95mm-80P-HP-90W(Up statistics)  Compare with Traditional Explosion proof light contrast (Down statistics)

Model : SS-TP-1230*95mm-80P-HP-90W(Up statistics) Compare with similar product on the market (Down statistics)
