Input Voltage |
AC85-305V 50-60Hz |
|
Length |
565mm,1175mm,1495mm |
|
Power |
18W,36W,48W |
|
LED Efficiency |
80Lm/W |
|
Initial Flux |
>1710Lm/3420Lm/4560Lm |
|
Power factor |
>0.96 |
|
CRI |
>80Ra |
|
Color |
Warm White/Natural White /Cool White/Red/ green/ blue/yellow |
|
Color Temperature |
2700-3300K(Warm White) 4000-5000K(Natural White) 5300-7000K(Cool White) |
|
Beam Angle |
240° |
|
Life span |
50,000 Hours |
|
Storage Temperature |
-40℃ to +65℃ |
|
IP Rating |
IP65 |
1) The lumens are all tested by 5500K or over and with PC cover, the error limit is about 10%.

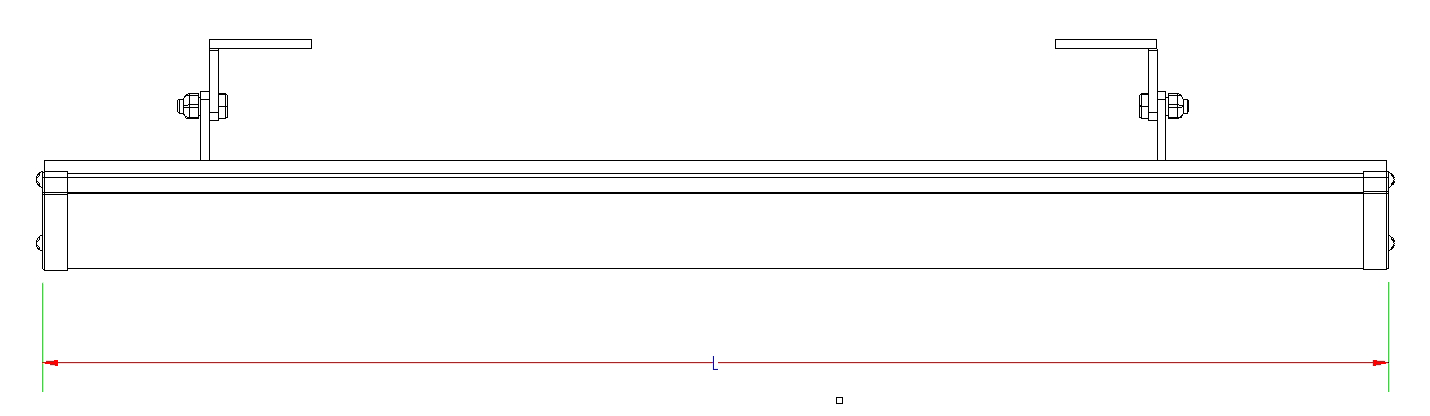

2) The length is according to PCB that’s used in AMB tube. We can also change the length according to customer’s requirement.
3) We have transparent and frost/ milk cover, if customers require others, we will also support , like strip cover, etc.
4) The Color Temperature can be done according to customer’s requirements, but we usually produce 3000K、4000K、5000K、5500K、6000K、6500K；
5) We can make high CRI products as per customer’s requirement, but usually 3000K and 4000K products has higher CRI. Because if 5500K or 6500K make high CRI, the light efficiency is lower.

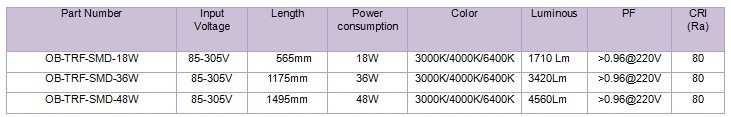

| Model | LED (Pcs) | Wattage (W) | Colour | Lumens (Lm) | Size (mm) |
Beam Angle(°) |
Input Voltage(V) |
Waterproof (IP) | Download |
| OB-TRF-SMD-18W | 18W | WW,NW,CW | 1710Lm | 565mm | 120D | 85~305VAC | IP65 |  |
|
| OB-TRF-SMD-36W | 36W | WW,NW,CW | 3420Lm | 1175mm | 120D | 85~305VAC | IP65 | |
|
| OB-TRF-SMD-48W | 48W | WW,NW,CW | 4560Lm | 1495mm | 120D | 85~305VAC | IP65 | |
The common traditional lighting places
Warehouse, factory and school etc. lighting
Metro station, aisle etc. lighting

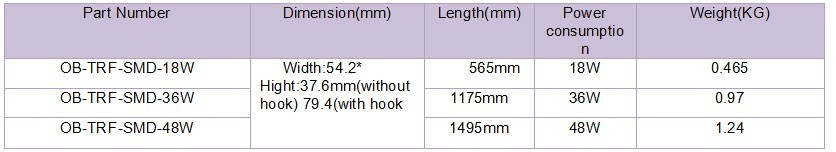

Package information:
1) Tolerance for the power is +/-10%;
2) Tolerance for the length is +/-1mm;
3) Tolerance for the weight is +/-10g
