OB-CNP-12IN-40W,60W,75W ,90WCanopy-Various InstallCanopy LightProducts


OB-CNP-12IN-40W,60W,75W ,90W



Die cast aluminum housing
Architectural UV resistant powder coating finish
UL listed / CUL listed
Input voltage: 120~277V AC
Highest quality long life LEDs
Low Tj for long life, low lumen depreciation
Low starting temp -30OC
Color temperature — 4700K ( other K values optional)

PDF Documentation

Features

Specifications
Model

LED

(Pcs)

Wattage

(W)

Colour

Lumens

(Lm)

Size

(mm)

Beam

Angle(°)

Input

Voltage(V)

Waterproof

(IP)

Download
OB-CNP-12IN-40W20Pcs40W4700K3200~3400Lm 120-277V
OB-CNP-12IN-60W30Pcs60W4700K4800~5100Lm 120-277V
OB-CNP-12N-75W75W6000~6380Lm 120-277V
OB-CNP-12IN-90W90W7200~7650Lm 120-277V

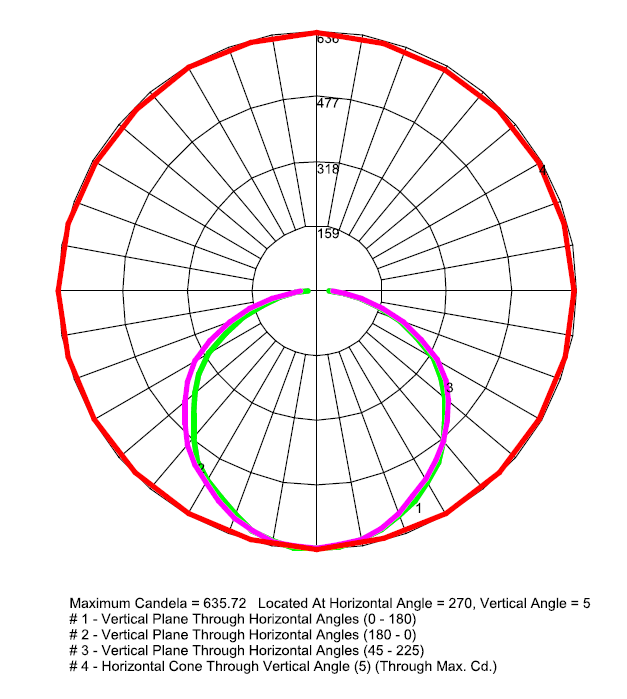

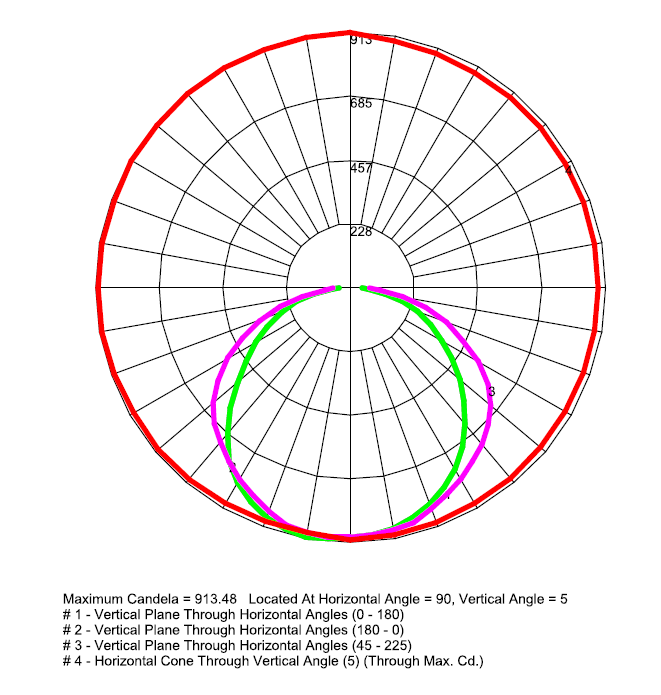

Photometric Curve
