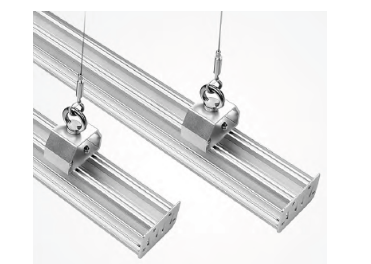

OB-T31 Module Highbay



When it comes to high lux requirement like 500lux for automobile manufacturing, machining, precision instrument, 31 Module high bay is exactly the right choice.
As the world first LED high bay tube manufacturer, OUTBACK combined the idea of high bay tube with module lighting to help customer to realize such high lux requirement.
vPowerful 200lux even at 12 meters
vIP65, corrosion-proof, water-proof and dust-proof

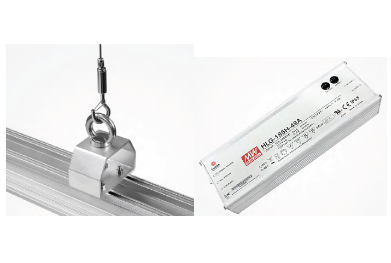

vMaintenance free: high quality Meanwell Driver
v5 year warranty
PDF Documentation

Features

Specifications
Model

LED

(Pcs)

Wattage

(W)

Colour

Lumens

(Lm)

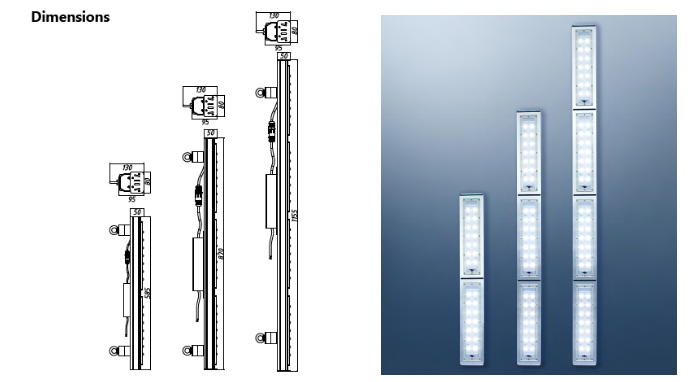

Size

(mm)

Beam

Angle(°)

Input

Voltage(V)

Waterproof

(IP)

Download
OB-T31-80W28pcs SEOUL353580w3000K-3500K/4000K-4500K/5500K-6500K7000-8500LM585*80*95mm 40° AC100-240V, 50~60Hz IP65
OB-T31-120W42pcs SEOUL3535120w3000K-3500K/4000K-4500K/5500K-6500K11000-12500LM870*80*95mm 40° AC100-240V, 50~60Hz IP65
OB-T31-160W56pcs SEOUL3535160w3000K-3500K/4000K-4500K/5500K-6500K15000-16500LM1155*80*95mm 40° AC100-240V, 50~60Hz IP65

Photometric Curve
