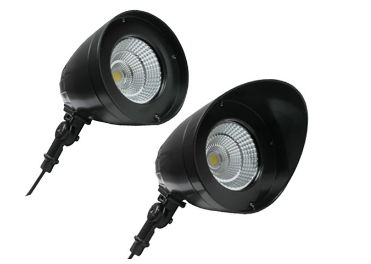

OB-BFL-15W



1. Engineered with proprietary binned LM-80-rated LEDs chips, which provide uniform color consistency
2. Multiple mounting options
Multiple knockouts for mounting convenience, and can mount to recessed outlet boxes or directly to surfaces
3. Internal aluminum heat sink
Temperature control aluminum heat sink dissipates heat and ensures thermal management created by LEDs and extended life
4. 50,000 hour life
Life is more than 17 years operating 8 hours a day, based on L70 standards
L70 Lifetime 50000 hours
3 hours/day* 45.7 years
6 hours/day* 22.8 years
9 hours/day* 15.2 years
12 hours/day* 11.4 years
24 hours/day* 5.7 years
365 days/year
5. High-quality shatter-resistant borosilicate lens
Constructed with borosilicate shatter-resistant glass
6. Durable housing
Constructed of one-piece rust and corrosion proof heavy-duty cast aluminum housing that is polyester powder coated for long durability and sealed to be free of dirt and insects
7. Universal voltage
Operate on universal voltage system with self contained driver meets UL 1310 UL 48 Class2
8. Environmentally friendly
Constructed without mercury and operates without emitting IR or UV radiation

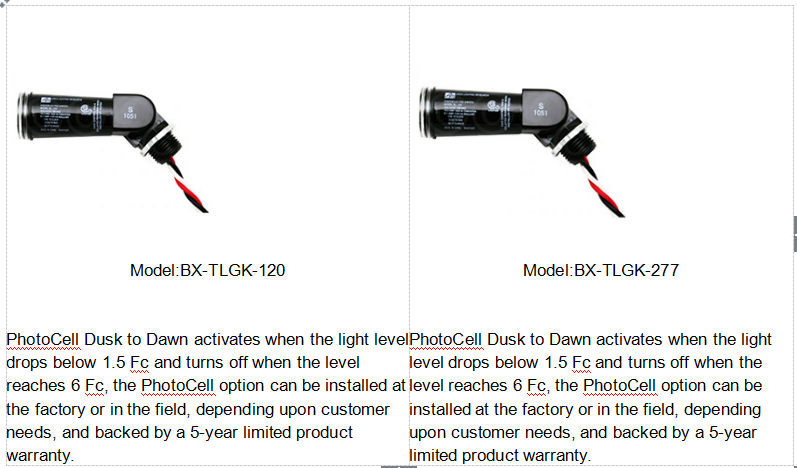

9. Building control compatible
Dusk-to-dawn and occupancy sensor compatible additional energy savings and reduced utility costs
PDF Documentation

Features
1. Engineered with proprietary binned LM-80-rated LEDs chips, which provide uniform color consistency
2. Multiple mounting options
Multiple knockouts for mounting convenience, and can mount to recessed outlet boxes or directly to surfaces
3. Internal aluminum heat sink
Temperature control aluminum heat sink dissipates heat and ensures thermal management created by LEDs and extended life
4. 50,000 hour life
Life is more than 17 years operating 8 hours a day, based on L70 standards
L70 Lifetime 50000 hours
3 hours/day* 45.7 years
6 hours/day* 22.8 years
9 hours/day* 15.2 years
12 hours/day* 11.4 years
24 hours/day* 5.7 years
365 days/year
5. High-quality shatter-resistant borosilicate lens
Constructed with borosilicate shatter-resistant glass
6. Durable housing
Constructed of one-piece rust and corrosion proof heavy-duty cast aluminum housing that is polyester powder coated for long durability and sealed to be free of dirt and insects
7. Universal voltage
Operate on universal voltage system with self contained driver meets UL 1310 UL 48 Class2
8. Environmentally friendly
Constructed without mercury and operates without emitting IR or UV radiation
9. Building control compatible
Dusk-to-dawn and occupancy sensor compatible additional energy savings and reduced utility costs

Specifications
Model

LED

(Pcs)

Wattage

(W)

Colour

Lumens

(Lm)

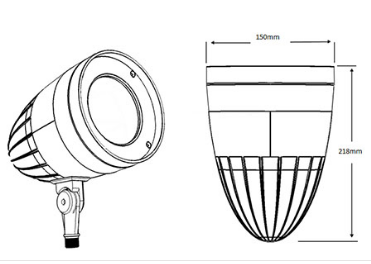

Size

(mm)

Beam

Angle(°)

Input

Voltage(V)

Waterproof

(IP)

Download
OB-BFL-15W15W4969 K1499 lm
OB-BFL-30W30W5139 K2817 lm

Photometric Curve
