OB-ST-50,60,76mm-25W,35W,50W,60W,80W,100W,120W,150W,200W-IP65/IP66Street Light with sensorLED Street LightProducts

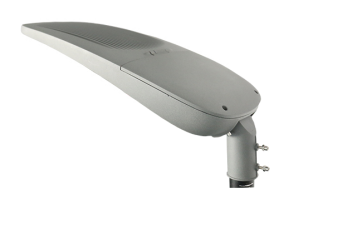

OB-ST-50,60,76mm-25W,35W,50W,60W,80W,100W,120W,150W,200W-IP65/IP66

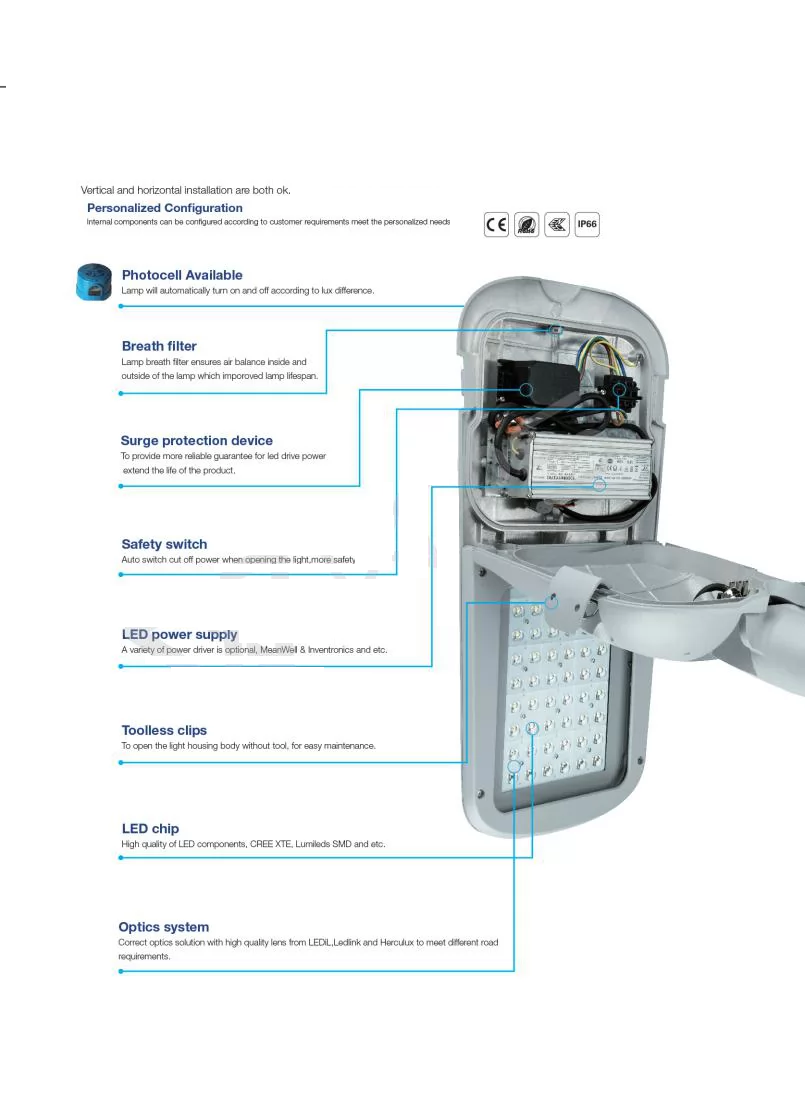

1. The mounting angle can be adjusted, suitable for vertical poles and horizontal poles;
2. Tool free maintenance;
3. Reports of SAA, EMC, LVD, IEC, IP65/66 testing, LM79, TM21, IK08/10
PDF Documentation

Features


Specifications
Model

LED

(Pcs)

Wattage

(W)

Colour

Lumens

(Lm)

Size

(mm)

Beam

Angle(°)

Input

Voltage(V)

Waterproof

(IP)

Download
OB-ST-60,76mm-25W25WWW,NW,CW120-130LM/W616× 259 × 186mm AC100-277V IP65/IP66
OB-ST-60,76mm-35W72Pcs LED35WWW,NW,CW120-130LM/W616× 259 × 186mm AC100-277V IP65/IP66
OB-ST-60,76mm-50W50WWW,NW,CW120-130LM/W616× 259 × 186mm AC100-277V IP65/IP66
OB-ST-60,76mm-60W60WWW,NW,CW120-130LM/W616× 259 × 186mm AC100-277V IP65/IP66
OB-ST-60,76mm-80W96pcs LED80WWW,NW,CW120-130LM/W616× 259 × 186mm TYPEII,III AC100-277V IP65/IP66

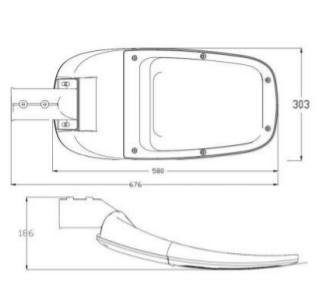

OB-ST-60,76mm-100W180Pcs LEDs100WWW,NW,CW120-130LM/W676× 303 × 186mm TYPEII,III AC100-277V IP65/IP66
OB-ST-60,76mm-120W180Pcs LEDs120WWW,NW,CW120-130LM/W676× 303 × 186mm TYPEII,III AC100-277V IP65/IP66
OB-ST-60,76mm-150W150WWW,NW,CW120-130LM/W676× 303 × 186mm TYPEII,III AC100-277V IP65/IP66

Photometric Curve

Suitable for the street lighting at highways, urban roads and secondary roads, stadiums,
sidewalks, residential areas, industrial areas, squares, parks, schools, villas, gardens and other places.
 1.Operation Ambient Temperature -20 to +50°C, Relative Humidity 20~90%
 2.Input Voltage 100~240V AC, 50/60Hz
 3.Storage Ambient Temperature -20 to +60°C, Relative Humidity 5~95%
 4. Mounting Height : Suitable for 3~6m height


l Do Not Use Other Devices for LED Street Light ,Installation Such as Stabilizer, Regulator …etc
l Do Not Open the Light Engine
l Do Not Soak the LED Street Light into Water
l Do Not Light up the System Without Grounding
