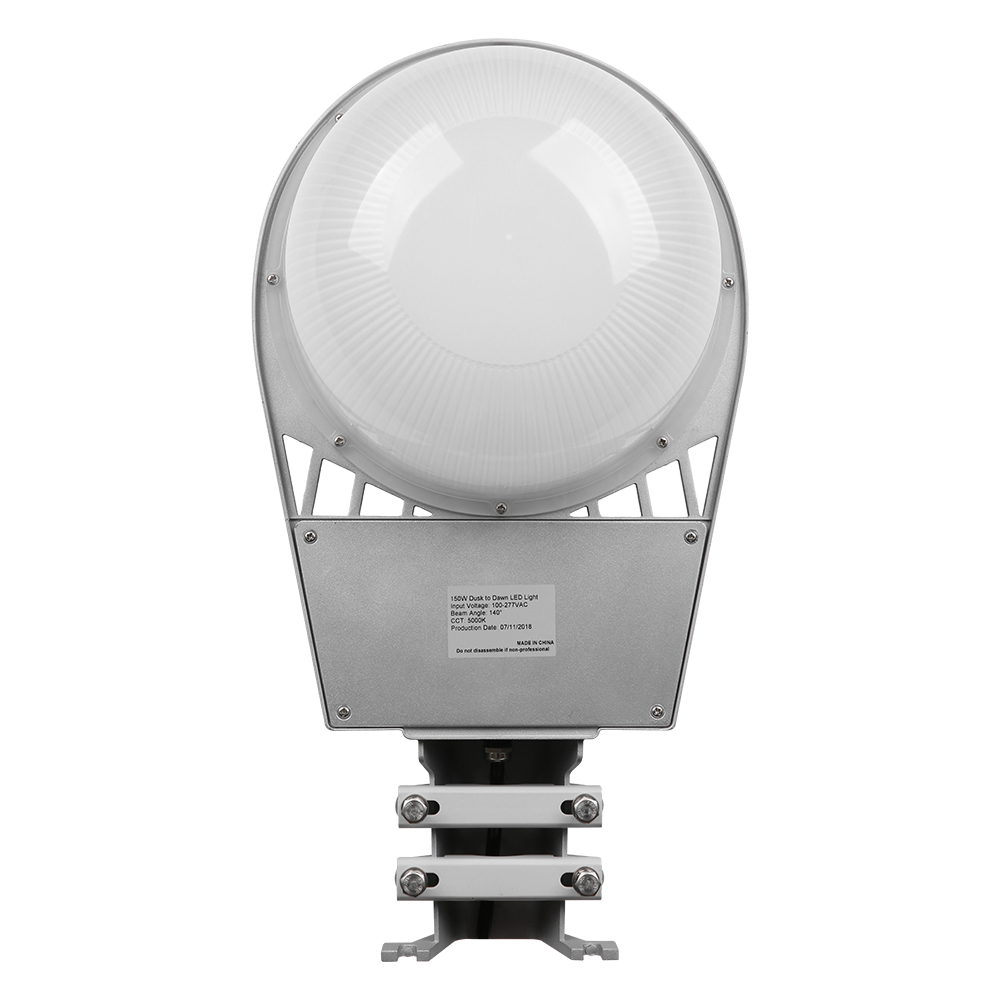

OB-DTD-80 W | 150 W

Street Light with sensor

LED Street Light

Products

OB-DTD-80 W | 150 W

Key Features
Mechanical Drawing

IP67 SOSEN driver, input voltage AC85-277V ;

Twist-lock photocell allows for dusk to dawn operation;

Replace MHL:400W

PDF Documentation

Features

Rugged housing is powder-coat finished to last longer

Acrylic prismatic refractor with white polycarbonate reflector with stands the test of time.

LENS ASSEMBLY:

UV-Stabilized acrylic prismatic refractor

White polycarbonate reflector

Mounts directly or with mounting arm(included)

Mounts to pole diameter 2.4"

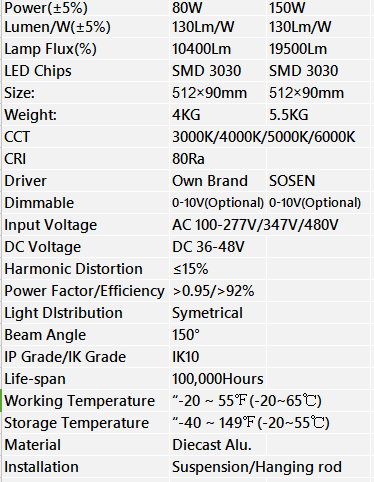

Specifications

Model	LED (Pcs)	Wattage (W)	Colour	Lumens (Lm)	Size (mm)	Beam Angle(°)	Input Voltage(V)	Waterproof (IP)	Download
OB-DTD-80W		80W	WW,NW,CW	10400Lm	512*90mm	150D	AC100-277V/347V/480V	IP67
OB-DTD-150W		150W	WW,NW,CW	19500Lm	512*90mm	150D	AC100-277V/347V/480V	IP67

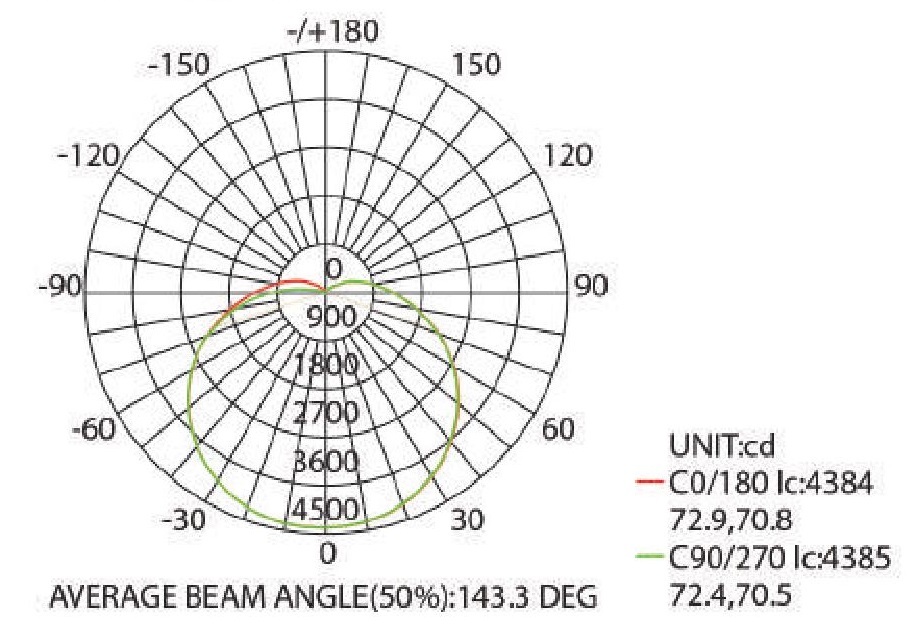

Photometric Curve

Application
Installation

A sturdy Dusk to Dawn Lamp with photocell option is maintenance free solution to outdoor area lighting needs in residential or commercial applications. Widely used in garages,yard,dock,back yard,barns,farms,alleyways,roadway,parking lots, sidewalk,porch,building wall and commercial usage as over night security,area and perimeter lighting.
