OB-SD-300W/450W

Narrow Beam/ Round 500W Above

LED Highmast

Products

OB-SD-300W/450W

Key Features

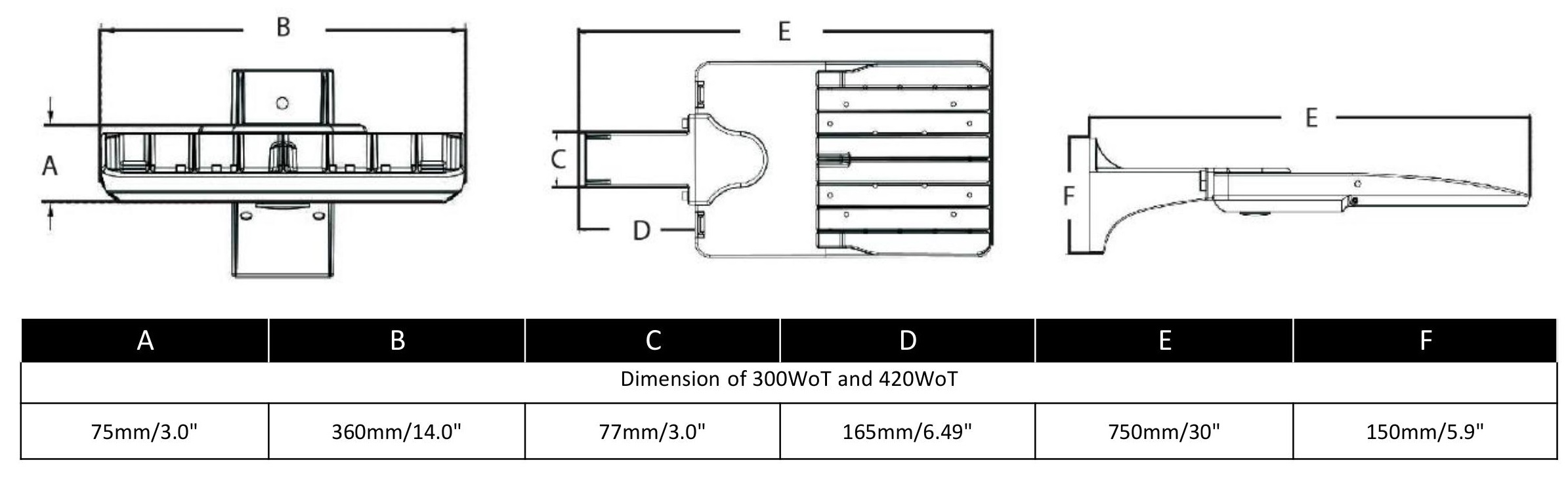

Mechanical Drawing

IP66/IK08; SOSEN driver, input voltage AC85-277;

Twist-lock photocell allows for dusk to dawn operation;

Replace MHL:1200W0-10V Dimming

Beam angle:TYPEIII,TYPE IV,TYPE V

PDF Documentation

Features

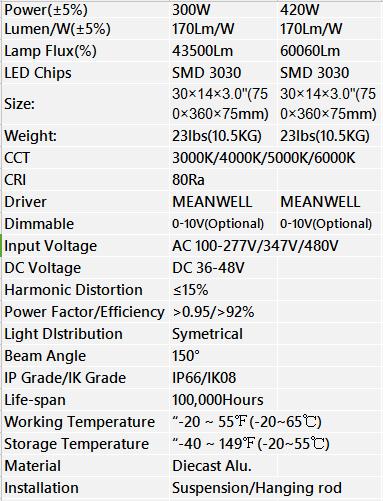

Specifications

Model	LED (Pcs)	Wattage (W)	Colour	Lumens (Lm)	Size (mm)	Beam Angle(°)	Input Voltage(V)	Waterproof (IP)	Download
OB-SD-300W		300W	WW,NW,CW	43500Lm	75036075mm	TYPE III,IV,V	AC100-277V/347V/480V	IP66/IK08
OB-SD-450W		450W	WW,NW,CW	60060Lm	75036075mm	TYPE III,IV,V	AC100-277V/347V/480V	IP66/IK08

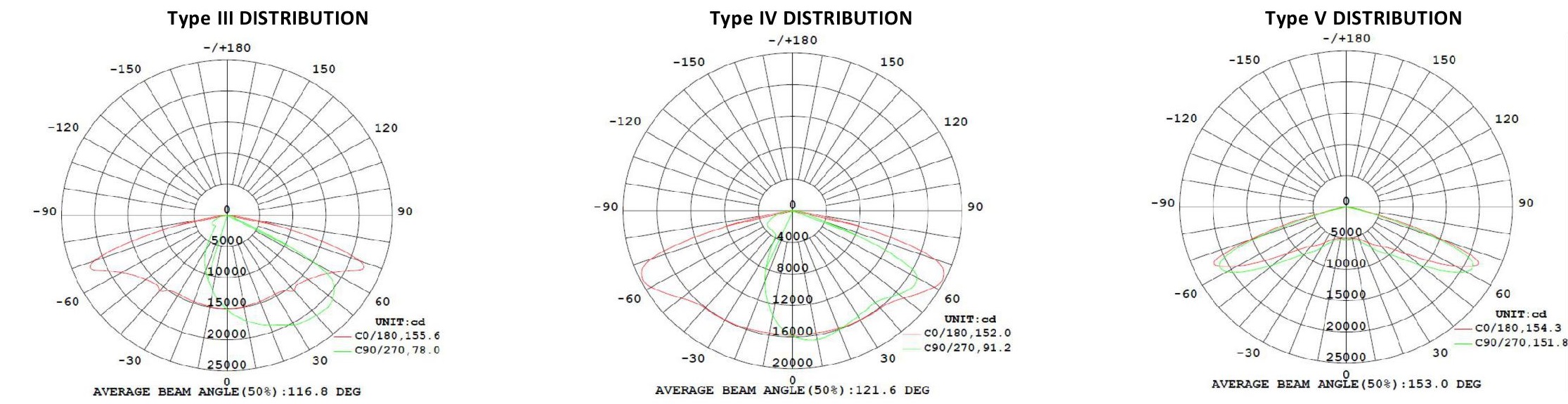

Photometric Curve

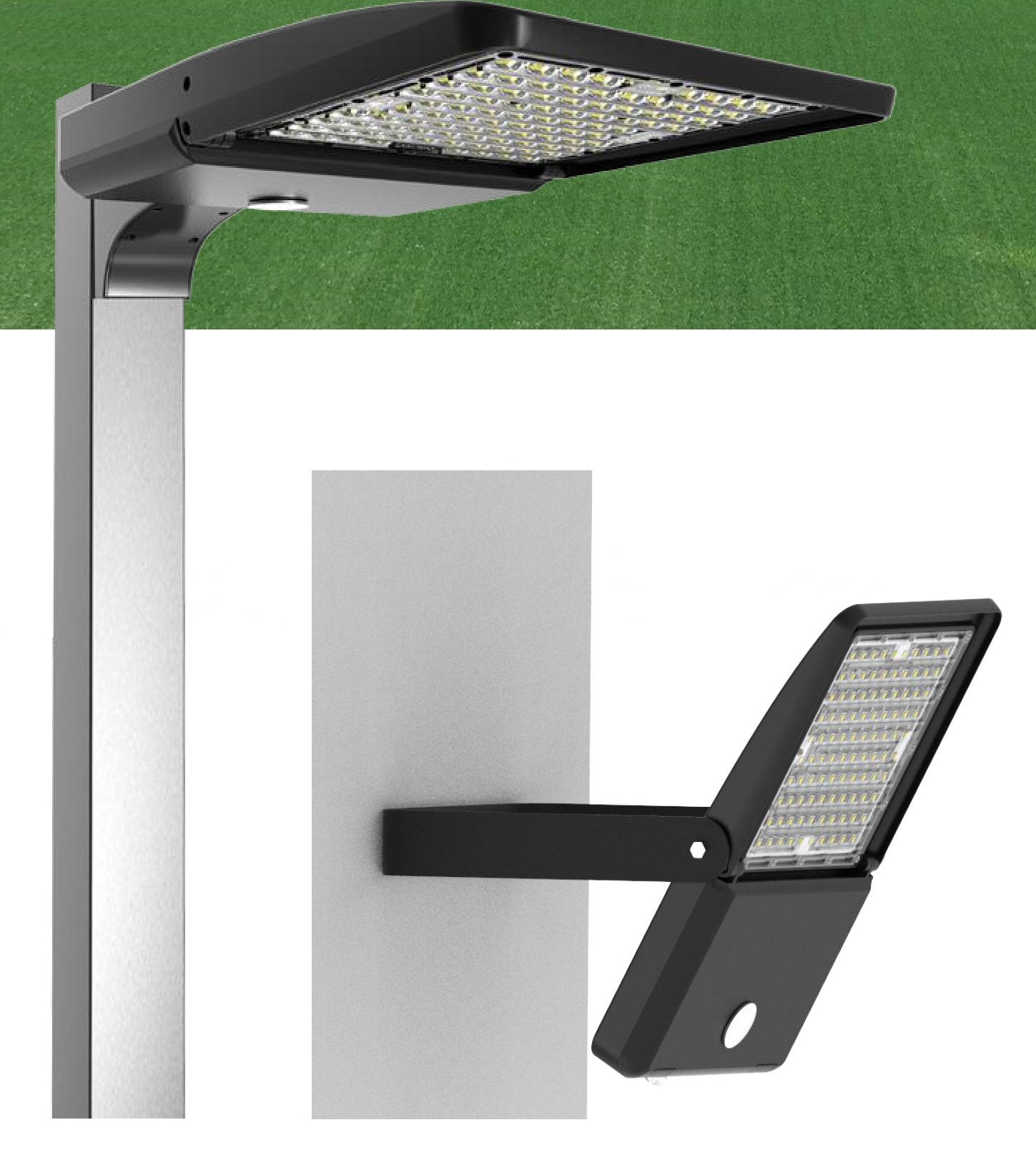

Application
Installation

Tennis Court&Basket ball fields. Widely used in garages,yard,dock,back yard,barns,farms,alleyways,roadway,parking lots, sidewalk,porch,building wall and commercial usage as over night security,area and perimeter lighting.
