High efficiency up to 130lm/w

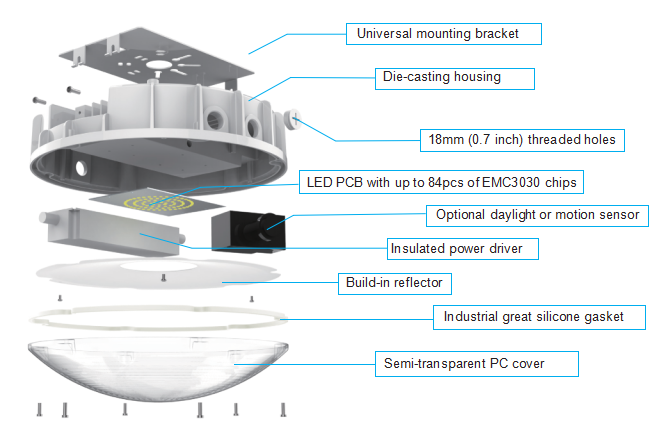

Precision sealed die-casting housing for indoor and outdoor applications IP65 for all environmental conditions
Wide 150° degree light distribution
Low glare, precisely designed optical PC lens Constant current driver efficiency > 90%
Quick to install and easy to use, secure and reliable
3x 18mm (0.7 inch) threaded holes for cables and sensors No UV or RF interference, No mercury or lead
5 Years warranty
Options
Microwave motion sensor Daylight sensor
Area of application
Garages and parking lots Entrance areas and walkways Stairways & storage areas
Certificates
CE, RoHS, UL pending, cUL pending, DLC Premium pending
|
ModelNominal wattagesNominal voltage Rated luminous efficacy Nominal luminous fluxBeam AngleLED QuantityCRI
(W)(lm/w)(lumen)
|
|||||||
|
OB-CNP-40W-RD-IP65
|
40W
|
AC100~277V 50~60Hz
|
130±10
|
5200±400
|
150°
|
56 PCS
EMC 3030
|
>80
|
|
OB-CNP-60W-RD-IP65
|
60W
|
|
130±10
|
7800±600
|
|
84 PCS
EMC 3030
|
|
|
Operating frequency
|
47-63HZ
|
Available light colors
|
warm white;natural white; daylight white
|
|
Type of current
|
AC100-277V
|
Available color temperatures
|
3000K;4000K;5000K;6000K
|
|
Power factor λ
|
>0.9
|
Color rendering index Ra
|
>80
|
|
Efficiency in %
|
>90%
|
Standard deviation of color matching
|
< 5
|
|
Start time (0.2s / 0.5s / … )
|
0.1S
|
UGR (Unified Glare Rating)
|
<23
|
|
Warm-up time to 60 % (1.5s / 2s / … )
|
0.5S
|
Available beam angles
|
150°
|
|
Type of protection
|
IP65
|
Heatsink temperature
|
20~+60℃
|
|
Tested dielectric strength
|
3.75KVac
|
Ambient temperature
|
-30~+50℃
|
|
Safety features
|
Open circuit protection; short circuit protection ; overvoltage protection
|
Storage temperature
|
-40~+80℃
|
|
Certificates
|
UL,cUL,DLC
|
|
|
|
Energy efficiency class
|
A+
|
|
|
Rated nominal Lifetime
|
50.000 hours
|
Base/Socket
|
Directly wired
|
|
Switching cycles
|
100.000 times
|
Dimmable
|
1-10V Dimmable optional
|
|
Lumen maintenance at e.o.l.
|
L80/B10
|
|
|
Model
|
D imension(mm)
|
CTN SIZ E(mm)
|
QT Y/ CT N
|
Net Weight/pcs(kg)
|
Gross Weight /CTN(kg)
|
|
OB-CP-40W/60W-RD-IP65
|

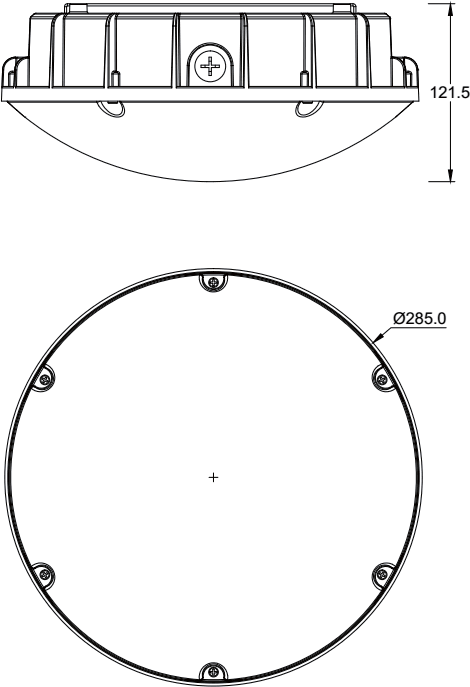

Φ285*121.5
|
64.5*64.5*28
|
8PCS
|
21.6
|
26
|
| Model | LED (Pcs) | Wattage (W) | Colour | Lumens (Lm) | Size (mm) |
Beam Angle(°) |
Input Voltage(V) |
Waterproof (IP) | Download |
| OB-CNP-40W-RD-IP65 | 40W | WW,NW,CW | 5200Lm | 285*121.5mm | 120D | AC100-277V | IP65 |  |
|
| OB-CNP-60W-RD-IP65 | 60W | WW,NW,CW | 7800Lm | 285*121.5mm | 120D | AC100-277V | IP65 | |

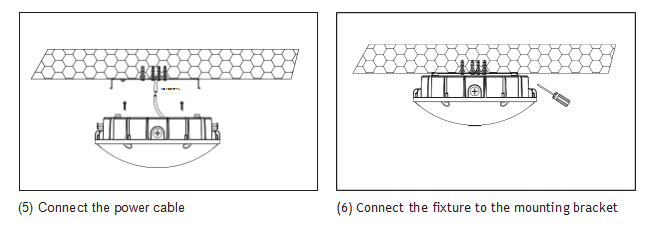

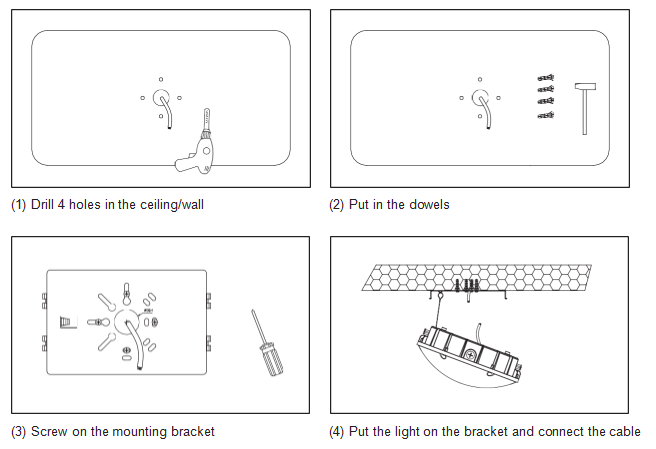

Carefully read and follow all warnings and instructions before installing or servicing the luminaire.
The installation should be done by an individual familiar with the construction and operation of the luminaire. The installation of this luminaire must be in accordance with national and local building and electrical codes. The product must not be damaged or operated in a damaged condition.
This luminaire must be directly wired on line. Any ballast or other power device previously used with the replaced luminaire must be removed.
Between the luminaire and any possibly flammable material must be an appropriate safety space (at least 20cm).
The luminaire must not be covered with heat insulating materials.
Always provide proper ventilation around the luminaire and do not exceed the maximum ambient temperature.
Compared to traditional lights the characteristic light distribution of this LED luminaire may differ. In order to be sure to meet your lighting requirements a photometric check of the installation is recommended.
