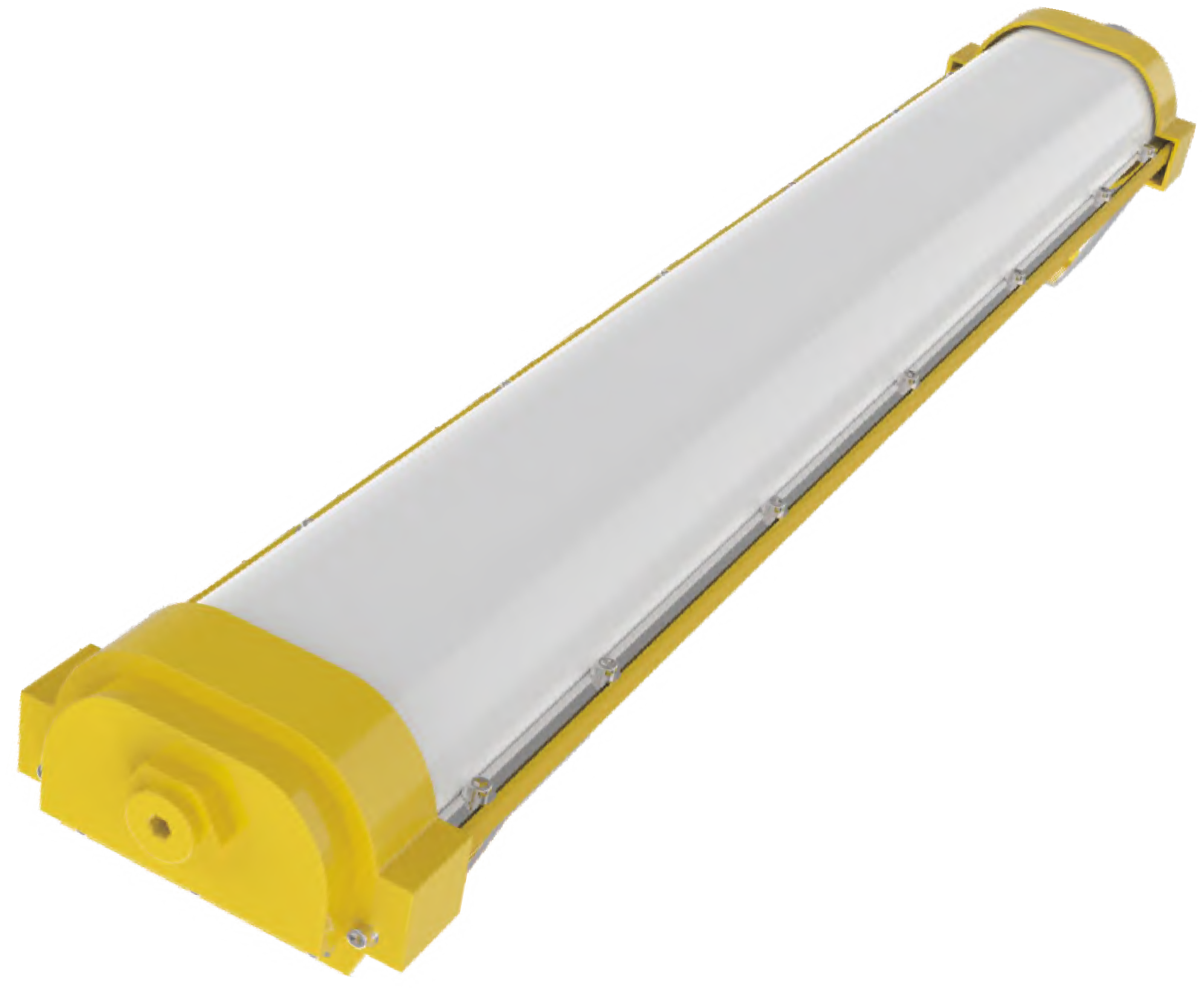

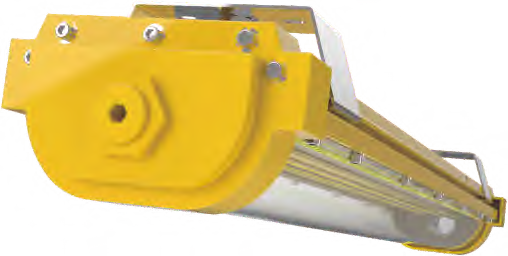

OB-EX-LHB-662,1262- 20W,40W,40W,60W,80W

OB-EX-LHB-662,1262- 20W,40W,40W,60W,80W

Key Features

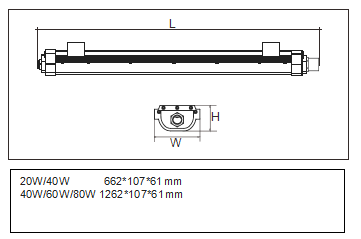

Mechanical Drawing

Housing: Pure Aluminum A6063 Thermal Conductivity: 226 W/mK Led: BridgeluxCRI: Ra80 SDCM: <6

Power Factor: >0.95THD: <15Driver: Explosion Proof Driver Driver Efficiency:92% Protection: OTP, OCP, OVP, SCP

Surge Protection: 4KV Waterproof: IP66Impact Test: IK08 Corrosion Proof: WF2Electrical: 100-277V, 50/60Hz Operating Temperature: -30~50 TM21: L90 B10 50,000HLifetime: 50,000H

Size: 20W/40W 662*107*61mm

40W/60W/80W 1262*107*61mm

PDF Documentation

Features

With Atex certified, our explosion proof light can be widely used for applications of flammable and explosive chemical materials. Bridgelux led and specially designed driver are used to guarantee safety and long lifetime.

TM21/LM79/LM80

Specifications

Model	LED (Pcs)	Wattage (W)	Colour	Lumens (Lm)	Size (mm)	Beam Angle(°)	Input Voltage(V)	Waterproof (IP)	Download
OB-EX-LHB-662-20W		20W	WW,NW,CW	2400Lm	66210761mm	120D	100~277V	IP66/IK08
OB-EX-LHB-662-40W		40W	WW,NW,CW	4800Lm	66210761mm	120D	100~277V	IP66/IK08
OB-EX-LHB-1262-40W		40W	WW,NW,CW	4800Lm	126210761mm	120D	100~277V	IP66/IK08
OB-EX-LHB-1262-60W		60W	WW,NW,CW	7200Lm	126210761mm	120D	100~277V	IP66/IK08
OB-EX-LHB-1262-80W		80W	WW,NW,CW	9600Lm	126210761mm	120D	100~277V	IP66/IK08

Photometric Curve

Application
Installation

With Atex certified, our explosion proof light can be widely used for applications of flammable and explosive chemical materials. Bridgelux led and specially designed driver are used to guarantee safety and long lifetime.
