Use AL 1070 Cooling fin heat sink, excellent heat dissipation
10 Inch 120° aluminum reflector, >93% transparency protection PC cover.
Constant current design, big heat dissipation space to ensure LED lighting efficiency and life span
|
category： |
parameter |
|
Base |
N/A |
|
Power |
60±2W |
|
Input Voltage |
85V-265Vac/50Hz |
|
light type |
2835 |
|

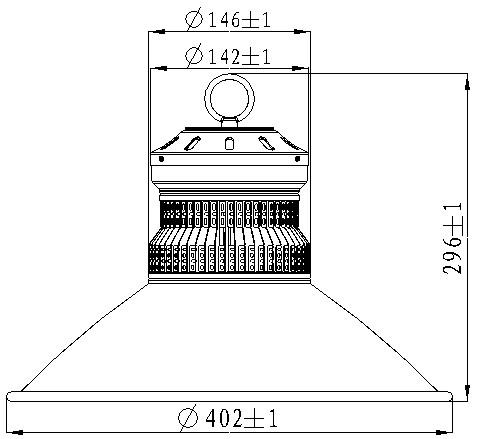

Dimension |
Φ402*296mm |
|
service life |
50000h |
|
Water Class |
IP20 |
|
weight |
≈1.7KG |
|
Beam Angle |
70°±2° |
|
POWER FACTOR |
0.9 |
|
SURFACE TEMPERATURE： |
<70℃ |
|
SAFETY ASSURANCE :CE,RoHs |
|
|
Inner box |
170*170*260mm |
|
QTY/Carton |
18PCS/Carton |
|
20pcs Aluminum cover size: |
S:570*570*390mm |
|
Gross Weight： |
21KG |
|
Export carton |
540*540*550mm |
|
20pcs Aluminum cover gross weight |
12.5KG |
|
CCT |
2700-3700K WW 3700-5000K NW 5000-7000K CW |
|
CRI: |
≥70 |
|
Luminous |
4900±5% Lm 5000±5% Lm 5100±5% Lm |
| Model | LED (Pcs) | Wattage (W) | Colour | Lumens (Lm) | Size (mm) |
Beam Angle(°) |
Input Voltage(V) |
Waterproof (IP) | Download |
| OB-HB-60W | 2835 | 60±2W | 2700-3700K WW3700-5000K NW5000-7000K CW | 4900±5% Lm5000±5% Lm5100±5% Lm | Φ402*296mm | 70°±2° | 85V-265Vac/50Hz | IP20 |  |
Suitable for Warehouses, Production and logistics workshops, Retail stores, Theme restaurants, Amusement parks, Indoor stadiums and public places, and other industrial and commercial lighting purposes.
