category： |
parameter |
|
Base |
N/A |
|
Power |
120±5W |
|
Input Voltage |
85V-265Vac/50Hz |
|
light type |
3*40W COB |
|

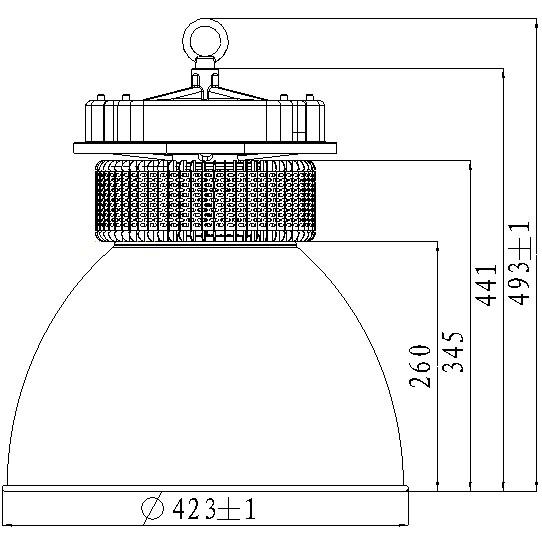

Dimension |
Φ423*493mm |
|
service life |
50000h |
|
Water Class |
IP20 |
|
weight |
≈2.7KG |
|

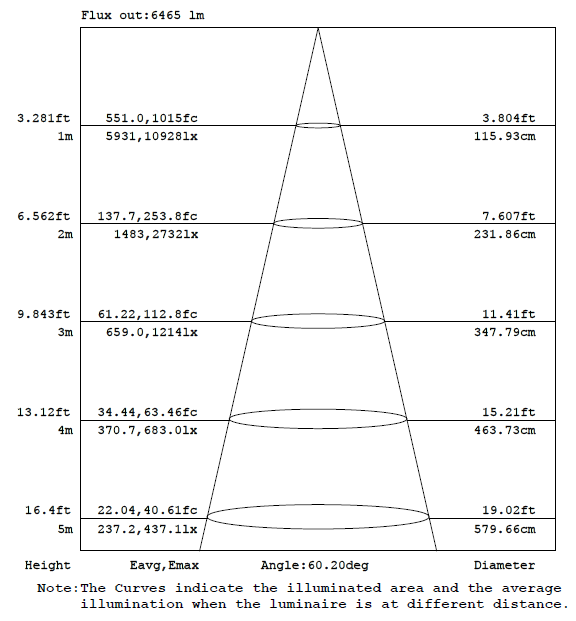

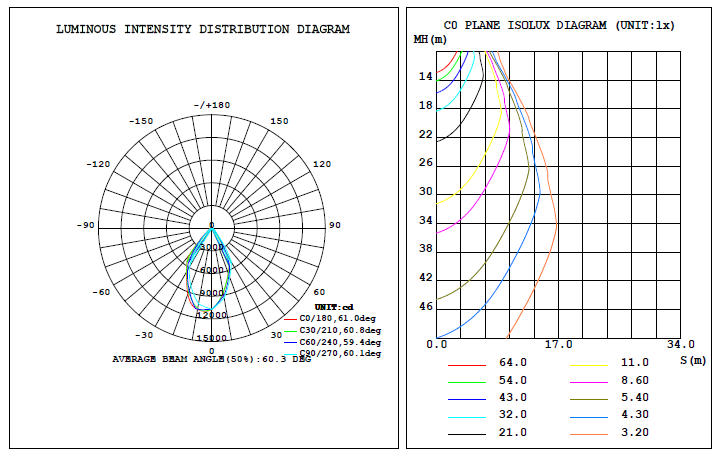

Beam Angle |
60°±2° |
|
POWER FACTOR |
0.9 |
|
SURFACE TEMPERATURE： |
<70℃ |
|

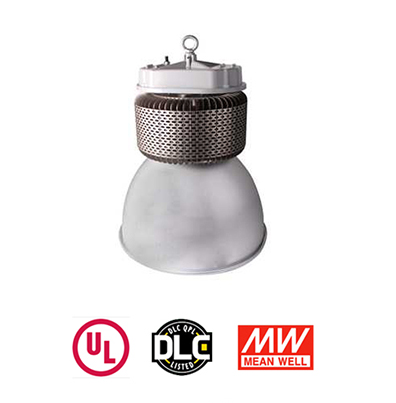

SAFETY ASSURANCE:UL,CE,RoHs |
|
|
Inner box |
280*280*293 |
|
QTY/Carton |
4PCS/Carton |
|
20pcs Aluminum cover size: |
455*455*580mm |
|
Gross Weight： |
16.5KG |
|
Export carton |
575*300*620mm |
|
20pcs Aluminum cover gross weight |
10.5KG |
|

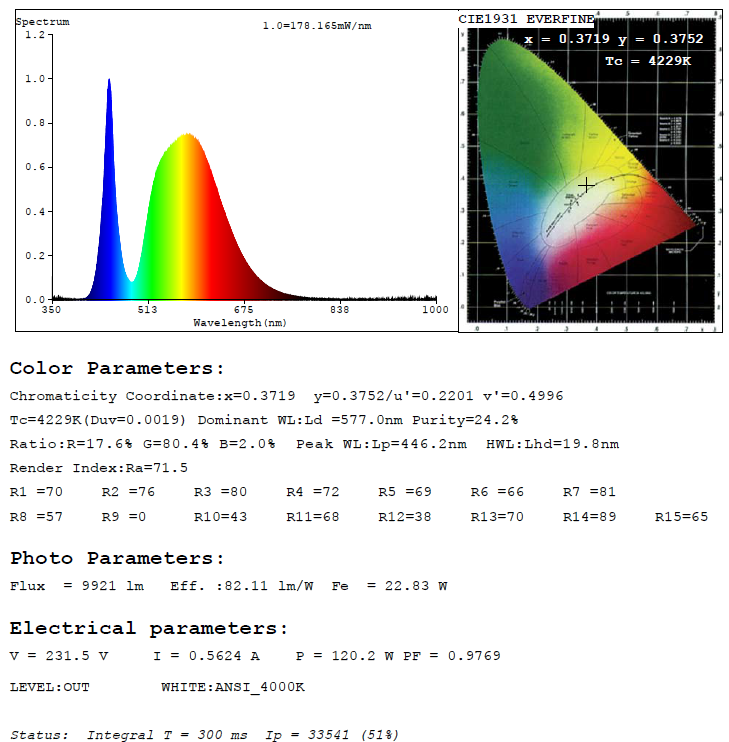

CCT |
2700-3700K WW 3700-5000K NW 5000-7000K CW |
|
CRI: |
≥70 |
|
Luminous |
9000±5%lm 9500±5%lm 10000±5%lm |
| Model | LED (Pcs) | Wattage (W) | Colour | Lumens (Lm) | Size (mm) |
Beam Angle(°) |
Input Voltage(V) |
Waterproof (IP) | Download |
| OB-HB-120W | 3*40W COB | 120W±5W | 2700-3700K WW;3700-5000K NW;5000-7000K CW | 9000±5%lm;9500±5%lm;10000±5%lm | Φ423*493mm | 60°±2° | 85V-265Vac/50Hz | IP20 |  |
Suitable for Warehouses, Production and logistics workshops, Retail stores, Theme restaurants, Amusement parks, Indoor stadiums and public places, and other industrial and commercial lighting purposes.
