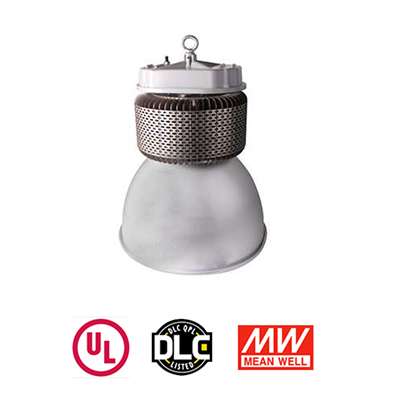

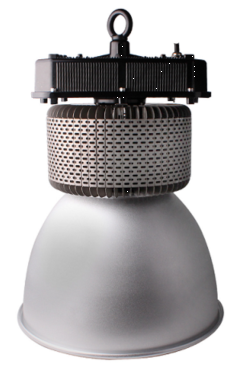

OB-HB-200W,220W,250W

Highbay-Classical -UL/DLC approved

LED HighBay

Products

OB-HB-200W,220W,250W

Key Features

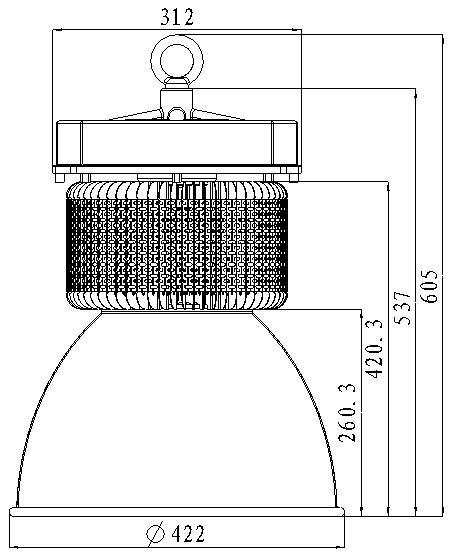

Mechanical Drawing

Use AL 1070 Cooling fin heat sink, excellent heat dissipation
16 Inch aluminum reflector/PC reflector, >93% transparency protection PC cover.
Constant current design, big heat dissipation space to ensure LED lighting efficiency and life span
We can provide 60°120°for 16 Inch aluminum reflector and 60°PC reflector.

PDF Documentation

Features

OB-HB-200W,220W,250W(size:Φ422*605mm)

category：		parameter
Base		N/A
Power		250±5W(200W/220W)
Input Voltage		85V-265Vac/50Hz
light type		4*60W COB
Dimension		Φ422*605mm
service life		50000h
Water Class		IP20
weight		≈7KG
Beam Angle		60°±2°
POWER FACTOR		0.9
SURFACE TEMPERATURE：		<70℃
SAFETY ASSURANCE: UL,CE,RoHs



Inner box	320320320mm
QTY/Carton	4PCS/Carton
20pcs Aluminum cover size:	S:455455580mm
Gross Weight：	25KG
Export carton	655340680mm
20pcs Aluminum cover gross weight	10.5KG
CCT	2700-3700K WW 3700-5000K NW 5000-7000K CW
CRI:	≥70
Luminous	21000±5%lm 21850±5%lm 22301±5%lm

OB-HB-200W,220W,250W(Size:Φ521*410mm)

category：	parameter
Base	N/A
Power	250±5W(200W/220W)
Input Voltage	85V-265Vac/50Hz
light type	4*60W COB
Dimension	Φ521*410mm
service life	50000h
Water Class	IP20
weight	≈5KG
Beam Angle	60°±2°
POWER FACTOR	0.9
SURFACE TEMPERATURE：	<70℃
SAFETY ASSURANCE :UL CE RoHs



Inner box	320320320mm
QTY/Carton	4PCS/Carton
20pcs Aluminum cover size:	S:455455580mm
Gross Weight：	19KG
Export carton	655340680mm
20pcs Aluminum cover gross weight	10.5KG
CCT	2700-3700K WW 3700-5000K NW 5000-7000K CW
CRI:	≥70
Luminous	21400±5%lm 21581±5%lm 22040±5%lm

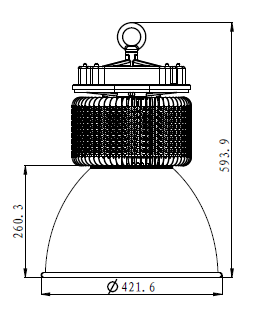

OB-HB-200W,220W,250W(Size:Φ593.9*421mm)

category：

parameter

Base

N/A

Power

250±5W(200W/220W)

Input Voltage

85V-265Vac/50Hz

light type

460W COB

Dimension

Φ593.9421mm

service life

50000h

Water Class

IP20

weight

≈6.5KG

Beam Angle

60°±2°

POWER FACTOR

0.9

SURFACE TEMPERATURE：

<70℃

SAFETY ASSURANCE:UL CE RoHs

Inner box

320320320mm

QTY/Carton

4PCS/Carton

20pcs Aluminum cover size:

S:455455580mm

Gross Weight：

25KG

Export carton

655340680mm

20pcs Aluminum cover gross weight

10.5KG

CCT

2700-3700K WW

3700-5000K NW

5000-7000K CW

CRI:

≥70

Luminous

21120±5%lm

22386±5%lm

22040±5%lm

Specifications

Model	LED (Pcs)	Wattage (W)	Colour	Lumens (Lm)	Size (mm)	Beam Angle(°)	Input Voltage(V)	Waterproof (IP)	Download
OB-HB-200W,220W,250W-A	4*60W COB(DLC:CREE XML)	250±5W(200W/220W)	2700-3700K WW;3700-5000K NW;5000-7000K CW	21000±5%lm;21850±5%lm;22301±5%lm	Φ422*605mm	60°±2°	85V-265Vac/50Hz	IP20
OB-HB-200W,220W,250W-B	4*60W COB(DLC:CREE XML)	250±5W(200W/220W)	2700-3700K WW;3700-5000K NW;5000-7000K CW	21400±5%lm;21581±5%lm;22040±5%lm	Φ521*410mm	60°±2°	85V-265Vac/50Hz	IP20
OB-HB-200W,220W,250W-C	4*60W COB(DLC:CREE XML)	250±5W(200W/220W)	2700-3700K WW;3700-5000K NW;5000-7000K CW	21120±5%lm;22386±5%lm;22040±5%lm	Φ593.9*421mm	60°±2°	85V-265Vac/50Hz	IP20

Photometric Curve

Application
Installation

Suitable for Warehouses, Production and logistics workshops, Retail stores, Theme restaurants, Amusement parks, Indoor stadiums and public places, and other industrial and commercial lighting purposes.
